Switch the selected light output with a hand movement when the sensor function is active.
TD-0280A rechargeable sensor headlamp
Direct the beam. Keep both hands on the task.
A compact Black / Orange work and outdoor headlamp combining LED spot lighting, COB flood lighting, wave-sensor control and an adjustable lamp angle.
The supplied material supports rain-splash use only. No submersion or model-specific IP rating is claimed on this page.
FACTORY DIRECT · WHOLESALE · OEM / ODM
Get factory pricing for td 0280a smart sensor headlamp
Tell us your quantity, destination market and customization needs. Get a quotation matched to your project.
Get Factory Quote on WhatsAppSamples · Private label · Packaging · Lead time
Choose a focused spot or a wider flood pattern to match the task in front of you.
Pivot the lamp body to direct light toward near-field work or the path ahead.
A built-in 1000 mAh battery supports convenient recharging from a compatible USB source.

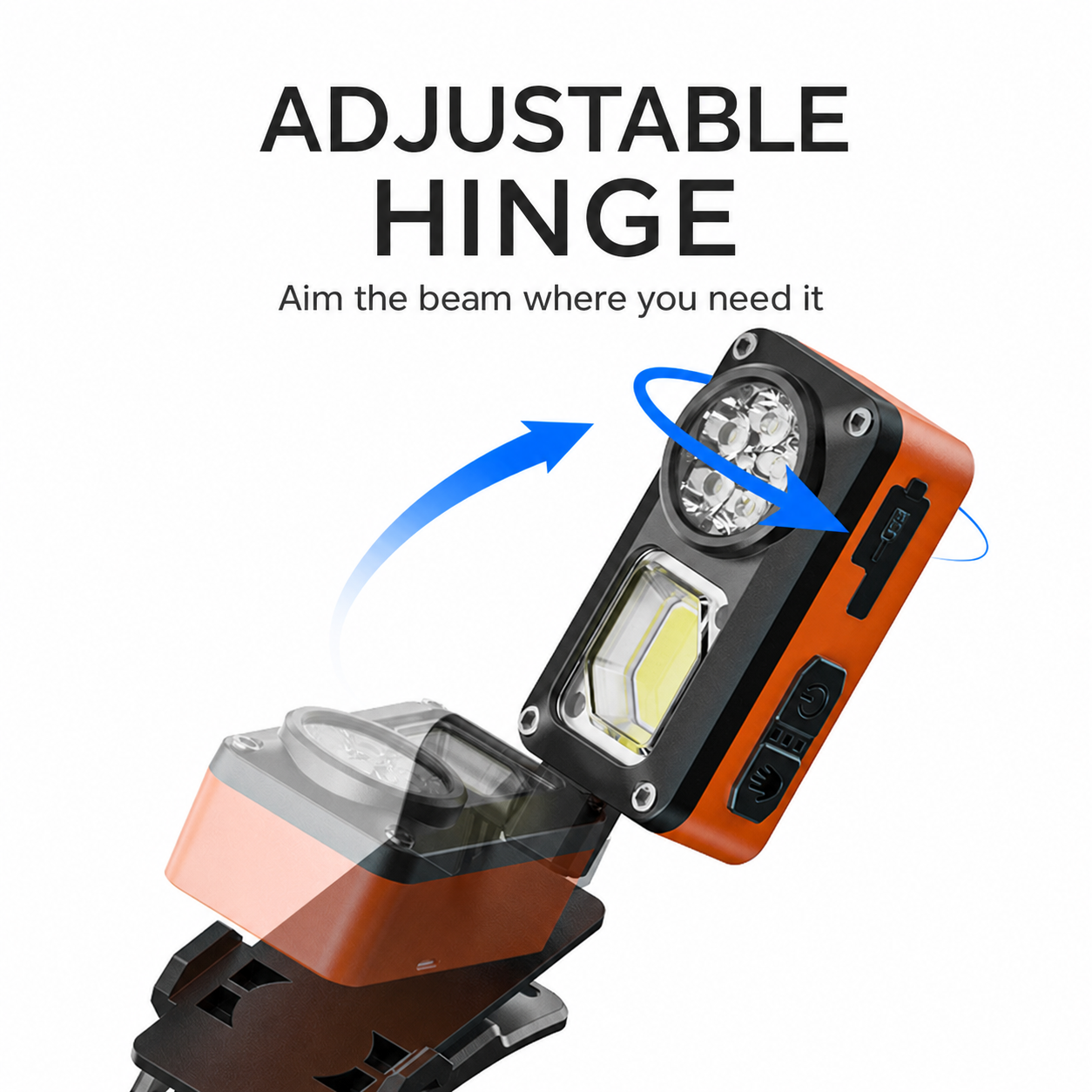

Aim the output
Adjust the lamp angle before the task starts.
The articulated mounting bracket lets the user position the lamp body for equipment checks, night fishing, campsite work and other hands-free lighting tasks.

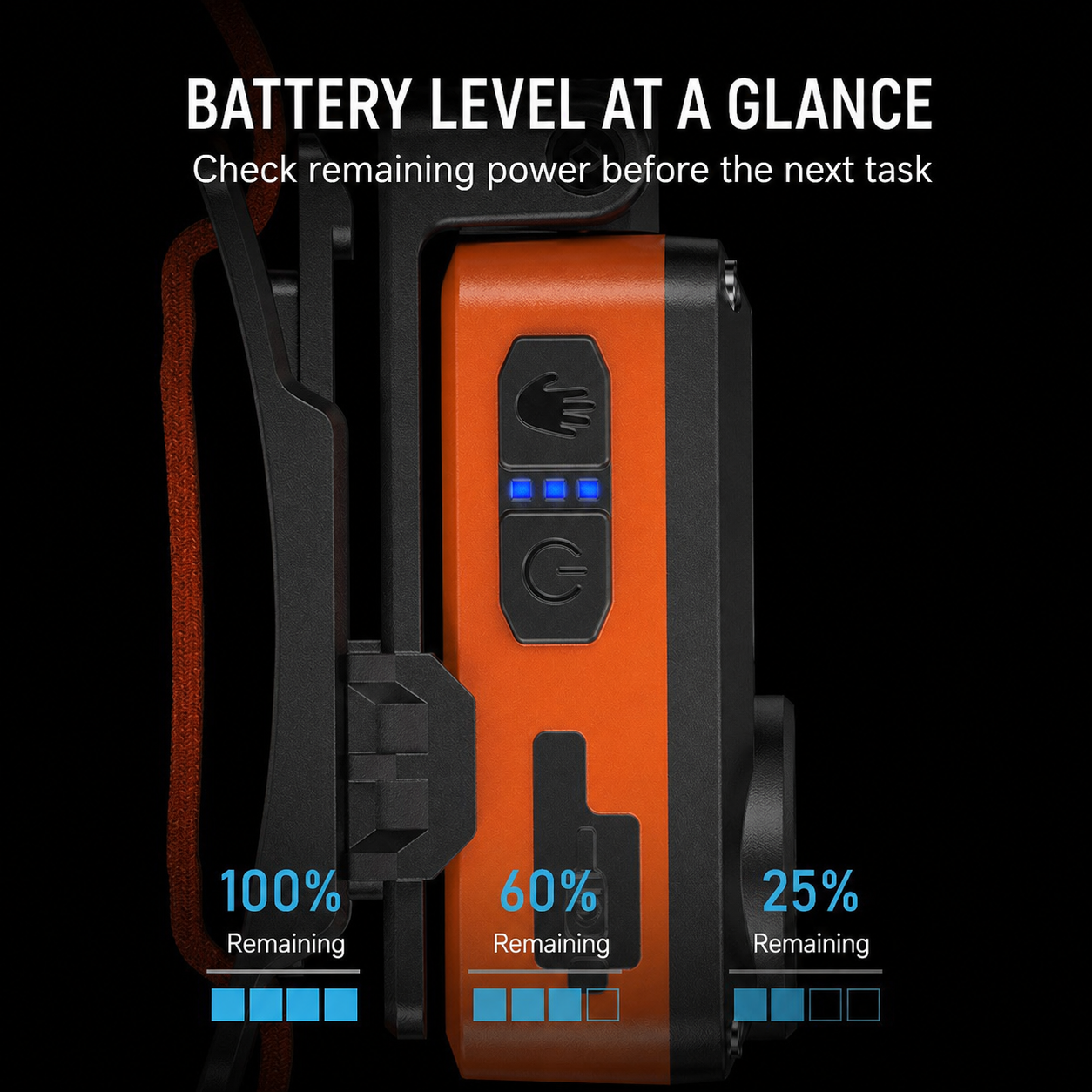

Power visibility
Check the battery indicator at a glance.
The blue indicator provides a quick visual reference for remaining battery status before or during use.

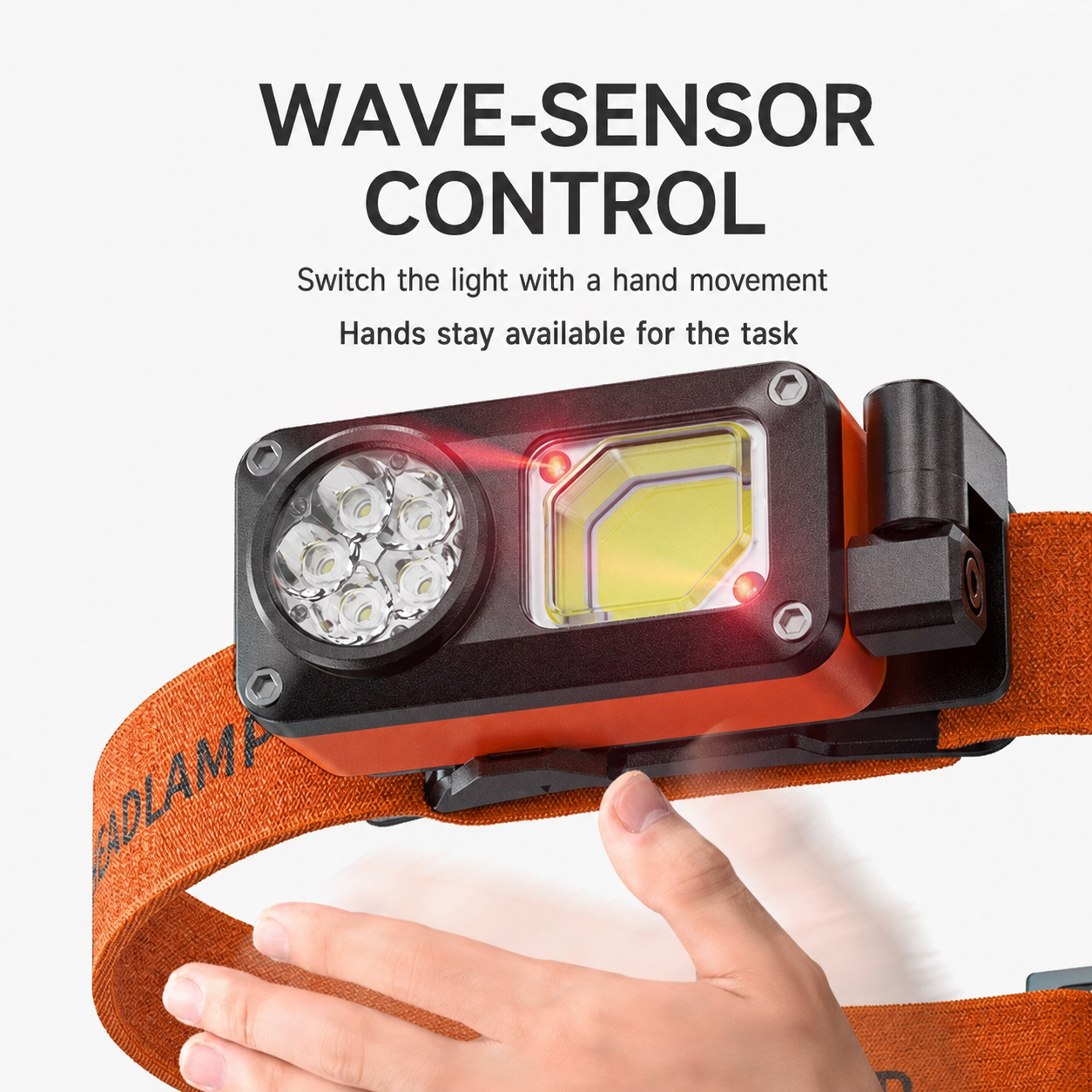

Hands-free switching
Use a hand movement when both hands are occupied.
The dedicated sensor button activates wave-control mode. Confirm final sensor logic against the approved sample before bulk production.

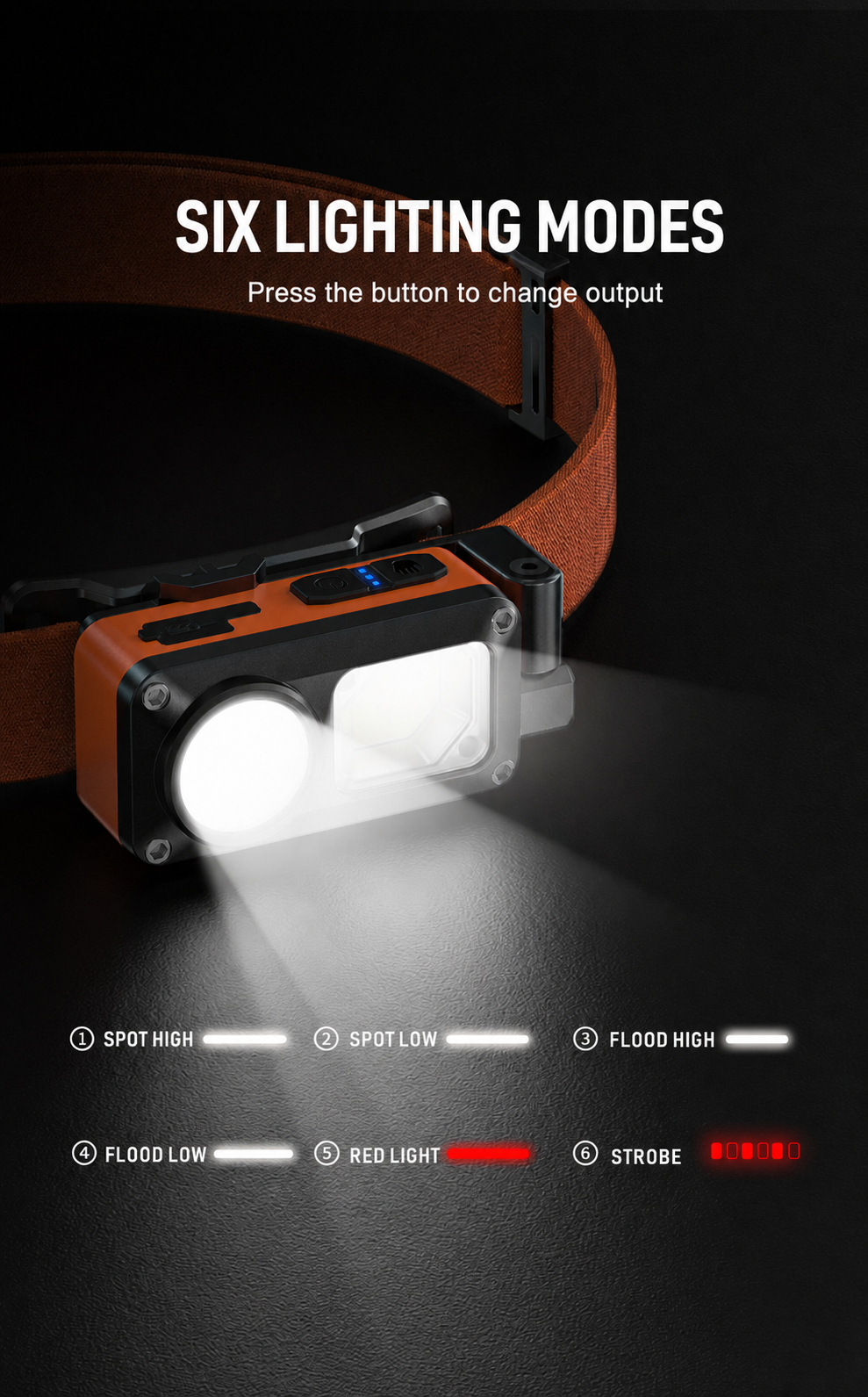

Six supplied lighting modes
Spot, flood, red and strobe outputs in one compact platform.
Use the button to step through the supplied mode sequence. Final button logic should be checked on the approved sample.

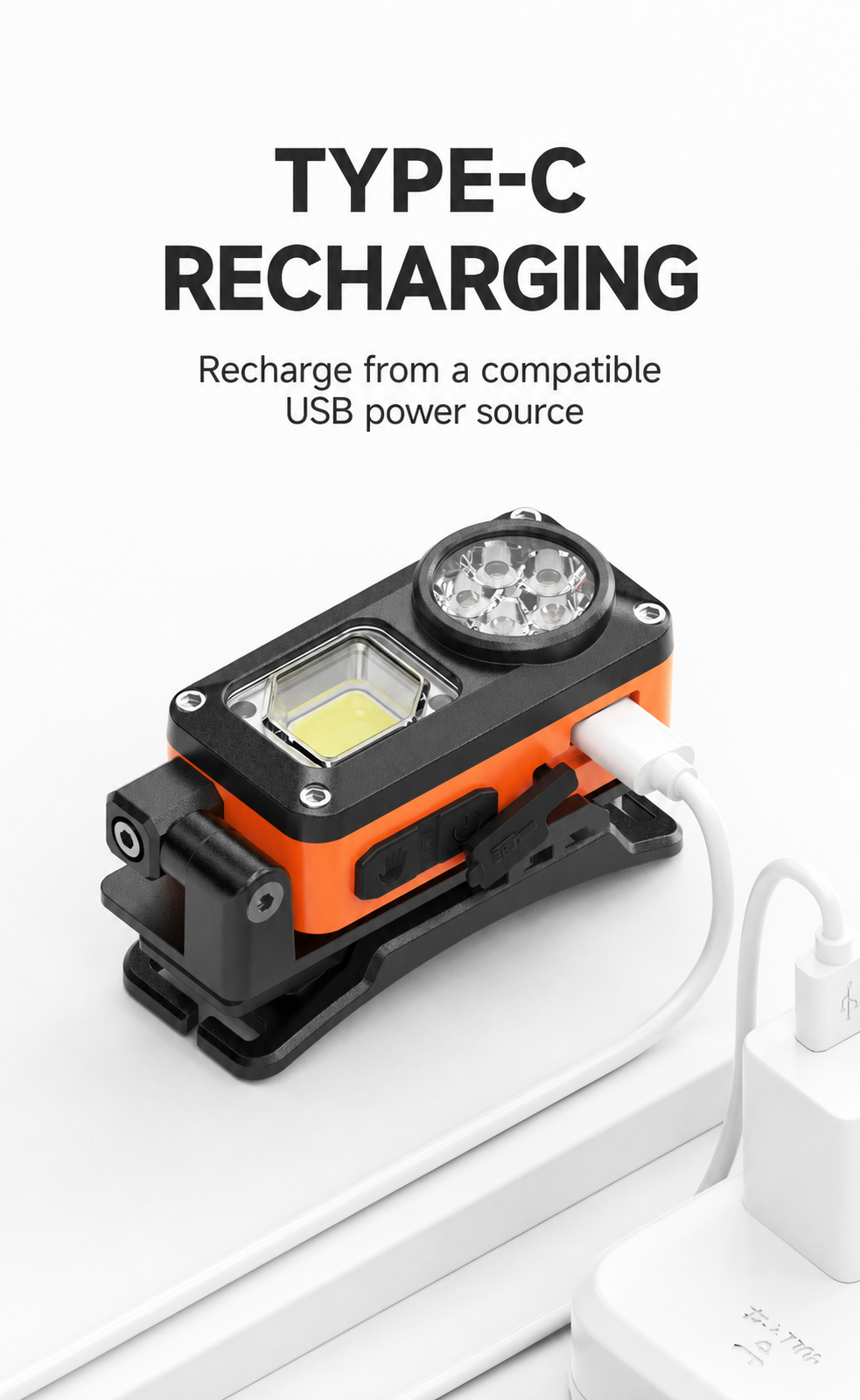

Recharge and reuse
Type-C charging for a familiar power setup.
Connect the headlamp to a compatible USB power source using a Type-C cable. Charging time and cable contents are confirmed in the order specification.

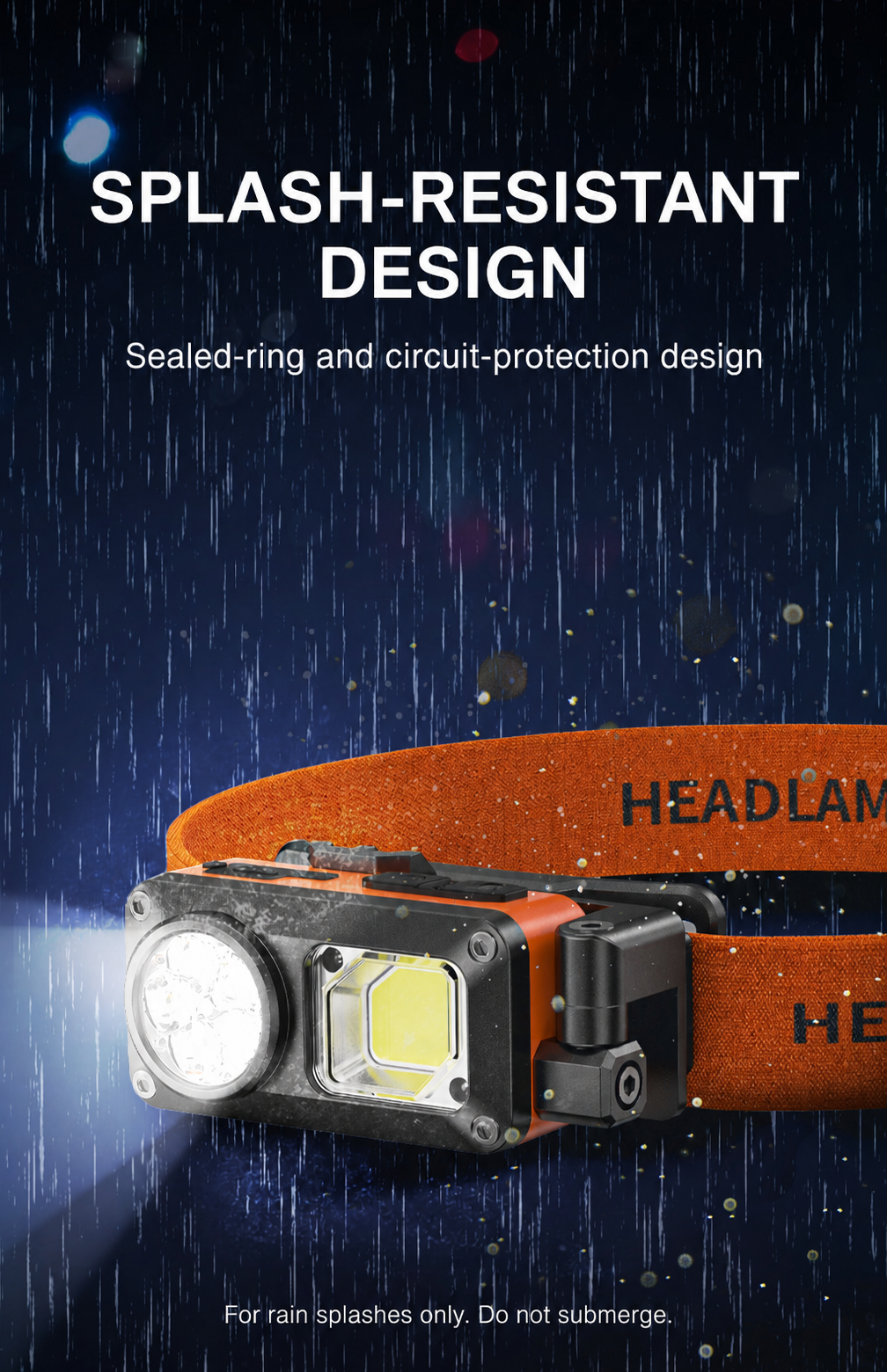

Outdoor-use boundary
Designed for rain splashes, not submersion.
The supplied material describes a sealed-ring and circuit-protection design. Keep the product out of water and confirm any destination-specific test requirement before order approval.

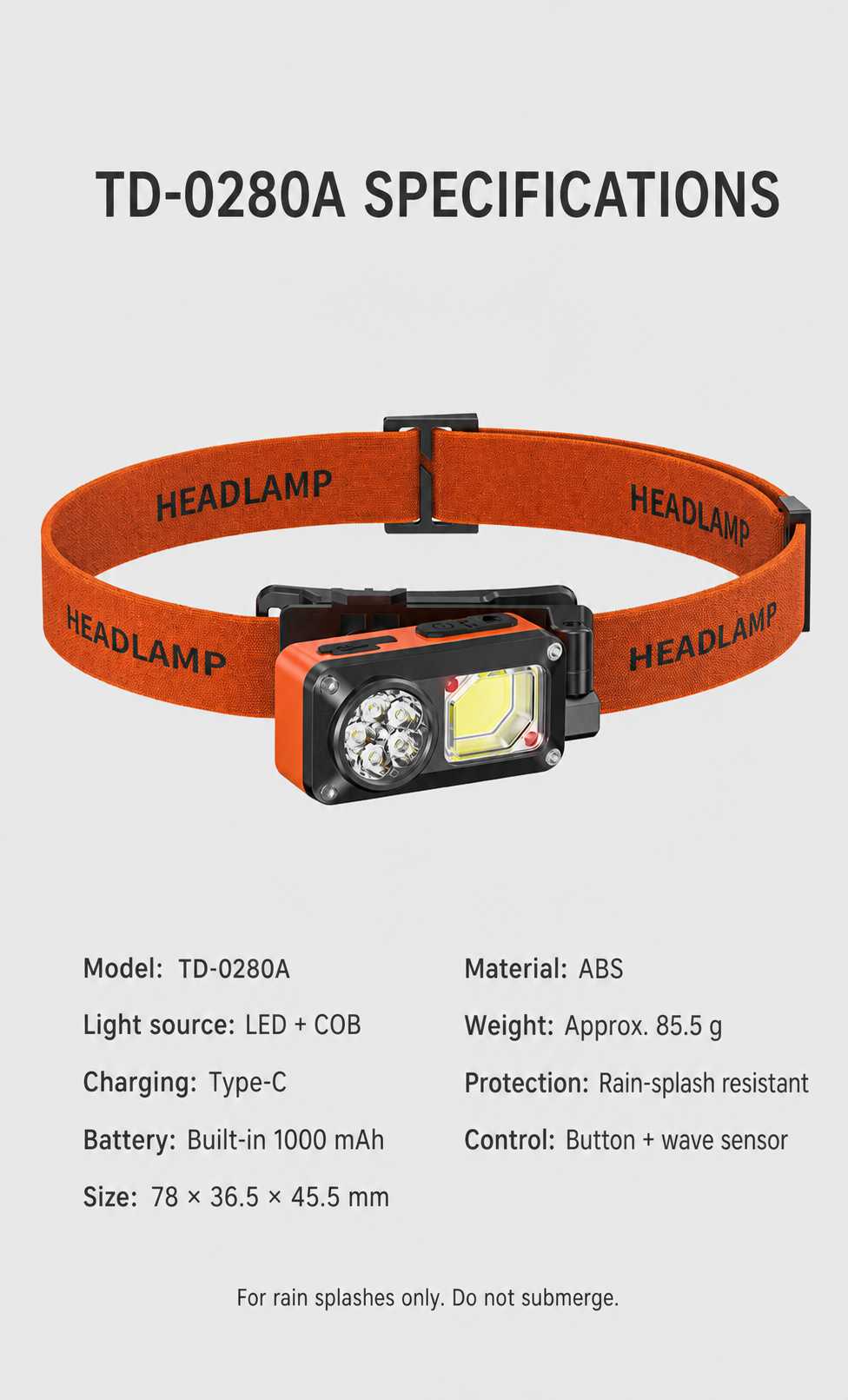

Buyer specification
TD-0280A product data in one view.
These references follow the supplied product information. Final battery label, charging accessory, packing method and test-document scope must match the approved sample and purchase order.
ModelTD-0280A
Standard colourBlack / Orange
Product typeRechargeable LED + COB headlamp
ControlPush-button + wave sensor
Lighting sequenceSpot high / spot low / flood high / flood low / red light / strobe
BatteryBuilt-in 1000 mAh rechargeable battery
ChargingType-C cable charging
Product dimensions78 × 36.5 × 45.5 mm
Product weightApprox. 85.5 g
Housing materialABS
Protection statementRain-splash-resistant design; do not submerge
Master carton140 pcs; 47.5 × 31 × 40 cm
CustomizationLogo printing available; confirm artwork, position and MOQ in quotation
Confirm before production
Approve the exact sample, light-mode sequence, sensor logic, 1000 mAh battery marking, Type-C accessory, carton data, logo artwork and destination-market documentation before production.
OEM / private-label support
Prepare the TD-0280A for your retail or distribution channel.
Logo printing is available. Feasibility, position, MOQ, artwork cost, packaging and documentation are confirmed in the project quotation.
Logo placement
Review the printable area and approved artwork on the product or packaging.
Packaging
Confirm retail box, instruction language, barcode and master-carton marks.
Order configuration
Lock Black / Orange colour, battery marking, cable contents and mode sequence.
Market documents
Verify model coverage and destination-market requirements before applying marks.
Buyer questions
Frequently asked questions.
How can I request a sample?
Contact BAIFEI on WhatsApp with your model, colour or configuration, quantity and destination country. We will confirm sample availability, price, shipping and lead time in your quotation. Orders and payment arrangements are confirmed with our team; this website does not accept online checkout.
What lighting outputs are supplied?
The supplied material shows spot high, spot low, flood high, flood low, red light and strobe. Confirm the final sequence on the approved sample.
Does the headlamp support gesture control?
Yes. The supplied configuration includes a selectable wave-sensor function for hand-movement switching.
Is the headlamp waterproof?
The supplied material supports rain-splash use and states that the product must not be submerged. No model-specific IP rating is claimed without the matching report.
Can I add my logo?
Yes. Logo printing can be discussed. Artwork, position, MOQ, packaging and documentation are confirmed in the quotation.
Start a TD-0280A sourcing brief
Share the quantity, market and branding requirement.
Include sample or wholesale quantity, destination country, logo artwork, packaging, required documents and target delivery date.
QuantityMarketLogoPackagingDocumentsDelivery window
Get Factory QuoteOEM / ODM & MARKET ADAPTATION
Built for your market, not just your logo.
Private label from 500 pieces · Custom colour and packaging from 1,000 pieces. Private-label support is available across all models. Send your model and artwork requirements on WhatsApp.
BAIFEI can review product processing, configuration, private-mold development, private-label branding, packaging and visual design against the selected model, order scope and destination market. Final scope is confirmed in the written quotation and approved sample.
Product & function configuration
Review available output, battery, charging, controls, accessories and finish options for the selected model.
Private-mold development
Evaluate structural or enclosure changes after drawings, tooling scope, quantity and validation requirements are reviewed.
Private-label branding
Plan logo position, marking method, label content and approved artwork for the selected product.
Packaging & carton design
Coordinate color box, inserts, manual, barcode, warning labels and carton marks against the approved order specification.
Market-ready visual support
Review product images, dimensions and channel materials required for the agreed e-commerce or distribution programme.
Destination-market review
Confirm requested documents, labels and configuration for the target market before sampling and production.
