A narrow architectural silhouette that becomes a deliberate vertical feature.
Model 2001G architectural wall lighting
A slim line of warm light for modern entrances.
A gold-finish linear wall-light platform designed to create a clean vertical accent at villa entrances, courtyards, terraces and exterior feature walls.
This listing is specified as fixed 3000 K and non-dimmable. Length, power, output, LED count, driver, weather rating and documents should be locked against the approved order configuration.
A warm output specified for welcoming entrances and hospitality-style exteriors.
Confirm the value against the selected length, LED layout and photometric file.
Suitable for general architectural accent and entrance illumination planning.
Exterior application

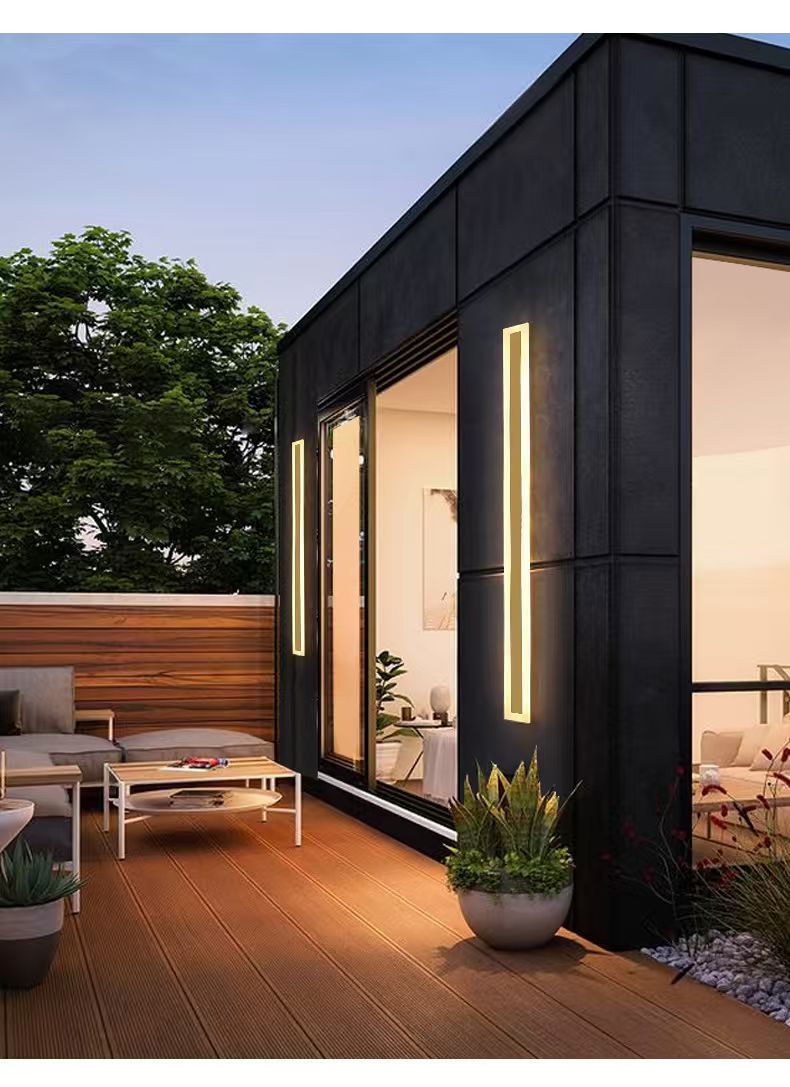

One linear gesture, scaled to the wall.
The slim gold centre and luminous perimeter suit contemporary entrances, dark façades and covered courtyard walls. The supplied scene images below are used without alteration.
Material and construction
Gold-finish metal with an acrylic light window.
The supplied construction reference combines a stainless-steel body and acrylic diffuser. The acrylic perimeter spreads light around the central gold strip while the narrow depth keeps the fixture visually restrained.
- Stainless-steel body reference
- Acrylic light-diffusing cover
- Gold-finish centre profile
- 30–240 cm supplied length range
Outdoor project planning
Confirm the protection evidence for the installation.
The supplied materials present the fixture as an outdoor waterproof and dust-resistant wall light, but no exact IP rating or matching test report was provided in this brief. Specify the required rating before quotation.
- Confirm the required IP rating
- Review cable entry and wall sealing
- Approve the finish for the local environment
- Match test documents to the ordered length and driver
Buyer specification
Keep the supplied reference configuration separate from the length table.
The source brief states 120 LEDs, 1000 lm and 100 lm/W. Because the supplied length table ranges from 9 W to 70 W, these values should be confirmed for the exact ordered length rather than applied to every version.
Model2001G
Product typeGold-finish linear outdoor wall light
Body / diffuser referenceStainless steel / acrylic
Colour temperature3000 K fixed warm white
DimmingNon-dimmable
Colour rendering indexCRI 80
Supplied reference LED count120 LEDs; confirm selected length and BOM
Supplied reference luminous flux1000 lm; confirm selected length and test data
Supplied reference efficacy100 lm/W; confirm selected driver and test data
Suggested applicationsVilla entrance, courtyard, terrace, gate and exterior feature wall
Fixed-output listing
This page presents model 2001G as 3000 K warm white and non-dimmable. A supplied marketing image illustrates other colour-temperature appearances, but these are not listed here as switchable or included variants.
Output validation required
Confirm LED count, system power, luminous flux, efficacy, CRI, driver, input voltage and photometric file for the selected length. The 120-LED / 1000-lm / 100-lm/W figures remain supplied reference data until matched to an approved BOM and test report.
Length and power references
Nine supplied lengths for different elevations.
All entries share a supplied 9 cm width, 4 cm depth and stainless-steel-plus-acrylic construction reference. Final drawings and electrical data must be approved per size.
- 0130 × 9 × 4 cm
Supplied power reference: 9 W
- 0240 × 9 × 4 cm
Supplied power reference: 11 W
- 0360 × 9 × 4 cm
Supplied power reference: 19 W
- 0480 × 9 × 4 cm
Supplied power reference: 24 W
- 05100 × 9 × 4 cm
Supplied power reference: 30 W
- 06120 × 9 × 4 cm
Supplied power reference: 38 W
- 07150 × 9 × 4 cm
Supplied power reference: 45 W
- 08200 × 9 × 4 cm
Supplied power reference: 60 W
- 09240 × 9 × 4 cm
Supplied power reference: 70 W
OEM / project configuration
Prepare the 2001G platform for your elevation and market.
Customization feasibility, MOQ and lead time depend on the chosen length, finish, electrical system, artwork, packaging, testing and order quantity.
Length selection
Choose from the supplied 30–240 cm references and approve the controlled drawing.
Finish and CCT
Use a physical sample to lock gold tone and the specified fixed 3000 K light appearance.
Electrical system
Confirm input voltage, driver, LED count, power, CRI and non-dimmable control.
Branding and packing
Plan labels, logo, instructions, inserts, cartons and shipping marks for the selected length.
Buyer verification file
Documents to confirm before production.
Approve overall length, mounting points, wall clearance, cable entry and installation direction.
Match LED count, power, voltage, driver, 3000 K, CRI and non-dimmable operation.
Request the applicable lumen, efficacy and IES or test file for the ordered length.
Confirm the required IP rating and applicable market documents for the exact construction.
Buyer questions
Frequently asked questions.
Is the 2001G dimmable or colour-temperature switchable?
No. The current listing is fixed 3000 K and non-dimmable. Any alternative version needs a separate confirmed specification.
Do all lengths use 120 LEDs and produce 1000 lm?
Not confirmed. These are supplied reference figures, while the power table changes by length. Match LED count, power and output to the selected length before ordering.
What is the exact waterproof rating?
No exact IP rating or matching report was supplied in this brief. State the required rating and request evidence for the approved construction.
Can the gold finish and packaging be customized?
Finish tone, labels, logo and packaging can be reviewed as project options. Feasibility, MOQ and lead time depend on the confirmed quantity and construction.
Start a project brief
Send the wall size, quantity and electrical requirements.
Include selected length, target market, input voltage, installation drawing, required IP rating, gold finish, quantity, branding, packaging, photometric needs and target delivery date.
